SKU: LNP-1002G-SFP

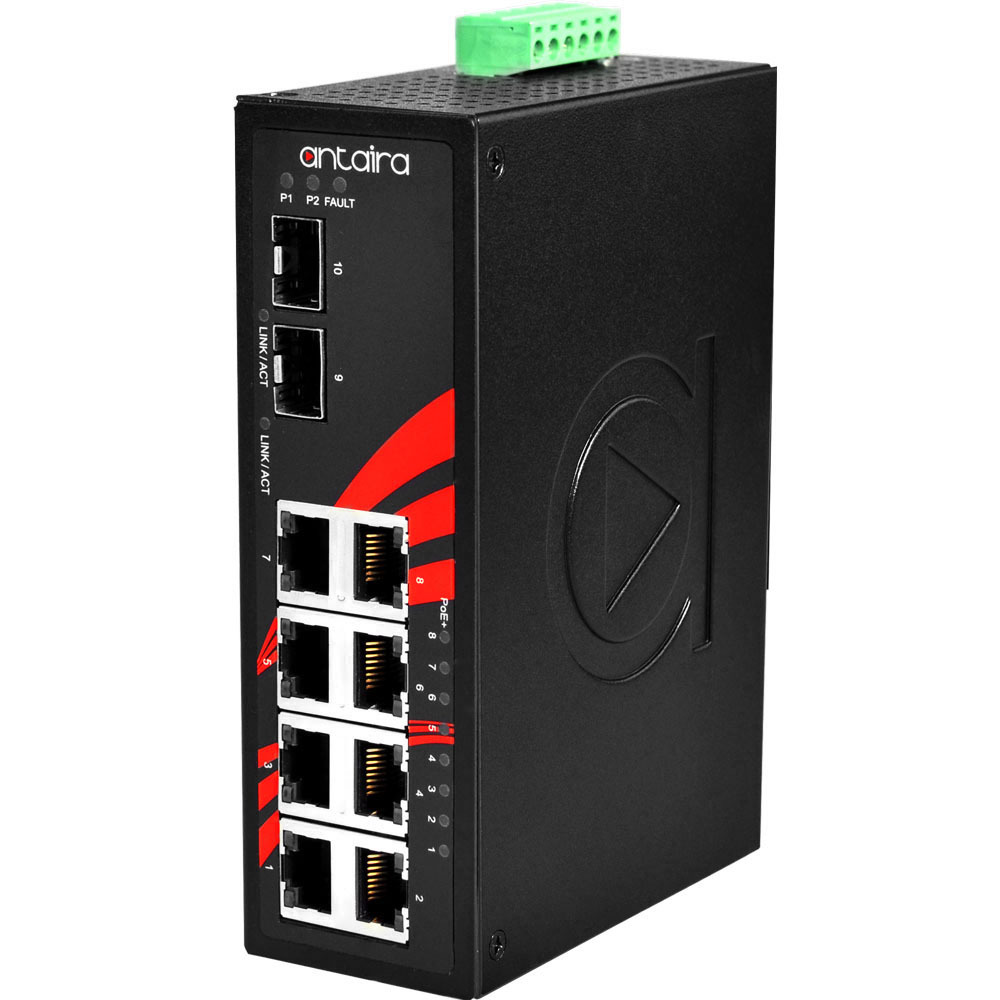

10-Port Industrial PoE+ Unmanaged Ethernet Switch, w/8*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slot

RRP $1,005.39
SAVE $34.00 (3%)
$971.39
including GST
In Stock

10-Port Industrial PoE+ Unmanaged Ethernet Switch, w/8*10/100/1000Tx (30W/Port) + 2*100/1000 SFP Slot

Antaira’s LNP-1002G-SFP industrial gigabit unmanaged Ethernet switch series are IP30 rated and DIN-Rail mountable. Each unit is designed with 8 gigabit Ethernet ports that are IEEE 8023.at compliant (power-over-Ethernet plus) and has two dual rate (100/1000) SFP slots, making it ideal for applications that demand high bandwidth and long distance communication.

This product series provides high EFT and ESD protection to prevent any unregulated voltage and is suitable for harsh environments. It supports the power redundancy feature using a dual power input design with reverse polarity protection. In addition, the built-in relay warning function alerts maintainers when power failures occur.

The LNP-1002G-SFP has an operating temperature range of -10 to 70°C and is perfectly designed to fulfill any special needs for industrial automation, outdoor applications and harsh weather environments.

(LNP-1002G-SFP)

  • Supports 8-Port 10/100/1000Tx IEEE 802.3at PoE+ Compliant with 30W per Port + 2-Port 100/1000 SFP
  • Supports Auto MDI/MDI-X Function
  • Store-and-Forward Switching Architecture
  • 10Gbps Back-Plane (Switching Fabric)
  • 8K MAC Address Table
  • 9.6Kbytes Jumbo Frame Support
  • Surge Protection: 2,000 VDC Support
  • ESD Protection: 6,000 VDC Support
  • Redundant Power Input Design: 48~55VDC
  • Built-in 1 Relay Output for Power Failure Detection
  • IP30 Rugged Metal Case Design
  • DIN-Rail and Wall Mount Support
  • Operating Temperature Range - STD: -10° to 70° C
  • 5-Year Warranty
Standards IEEE 802.3, 3u, 3ab, 3az, 3at
Switching Architecture Back-Plane (Switching Fabric): 10Gbps
Transfer Rate Up to 1.4Gbps for Gigabit Ethernet port
Jumbo Frame 9.6 Kbytes
MAC Table Size 8K
Ethernet Port 8*RJ45 Ports with 10/100/1000Tx (PSE 30W/Port) auto MDI/MDI-X connection + 2*100/1000 SFP Slot
PoE Pin Out V+, V+, V-, V-, for pin 1, 2, 3, 6 (Endspan, MDI-X Alternative A)
Input Voltage 48~55VDC, Redundant Input (w/ 1 removable 6-contact terminal block)
Overload Current Protection Present
Reverse Polarity Protection Yes
Power Consumption 210 Watts @ 48V, 250 Watts @ 51~55V Full Load with PoE Function
Housing Metal, IP30 protection, Din-Rail Mounting (wall mounting bracket is also included)
Dimensions 46mm (W) x 99mm (D) x 142mm (H)
Weight Unit Weight: 1.5-lbs
Shipping Weight: 2 lbs
Operating Temperature -10° to 70° C (14° to 158° F)
Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
Ambient Relative Humidity 5 to 95%, (non-condensing)
EMI FCC Class A
EMS EN6100-4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11, 4-12, 6-2, 6-4
Free fall / Shock / Vibration IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6
Green RoHS Compliant
Certifications FCC, CE, UL 508 (pending)
Warranty 5 years
SKU LNP-1002G-SFP
Brand Antaira
