SKU: VER-VOR-ORM

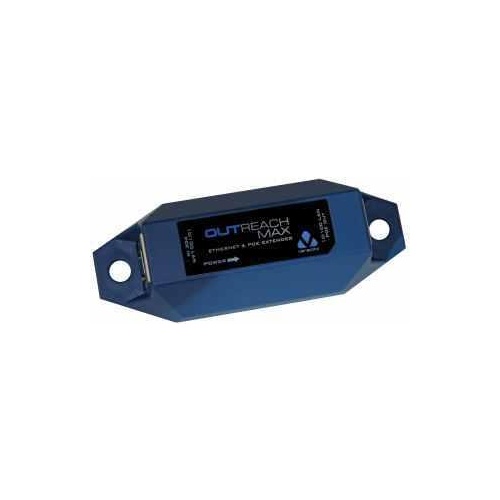

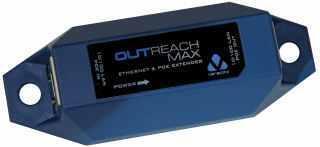

OUTREACH Max Ethernet Extender for PoE and PoE Plus equipment

RRP $239.00
SAVE $20.00 (8%)
$219.00
including GST
In Stock

 Ethernet Extender for PoE and PoE Plus equipment



OUTREACH Max enables network installers to overcome the distance limitations of Ethernet and Power over Ethernet (PoE) easily, meaning that IP cameras, wireless access points, and other PoE-powered network devces can be located right where they are needed.

Simply connect OUTREACH Max in-line with the Cat5 or Cat6 network cable for every extra 100 metres (328 feet) of length required. No configuration or electrical supply is needed, and full-rate network throughput is maintained.

Note: OUTREACH Max extends network connections to PoE-enabled devices only. To extend the range of Ethernet without PoE, see Veracity's OUTREACH Lite Ethernet extenders.
Range:

100m (328') per cable segment between OUTREACH Max units:



Camera power 6W 12W 18W 25W
Range with PoE switch 400m 200m n/a n/a
Range with OUTSOURCE 700m 300m n/a n/a
Range with OUTSOURCE Plus 700m 450m 350m 200m
(Range depends only on peak device power and not "PoE power class")

Network:

10BASE-T / 100BASE-TX, full/half duplex (auto-negotiated)
Patch or crossover cables


PoE standards supported:

IEEE 802.3af PoE
IEEE 802.3at (2-event) PoE Plus
"Always-on" / "dumb" 48V PoE
"Four-pair" PoE


Dimensions:

L 105mm x W 40mm x H 22mm

(VER-VOR-ORM)

SKU VER-VOR-ORM
Brand Veracity
