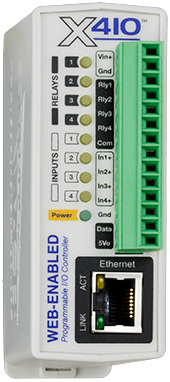

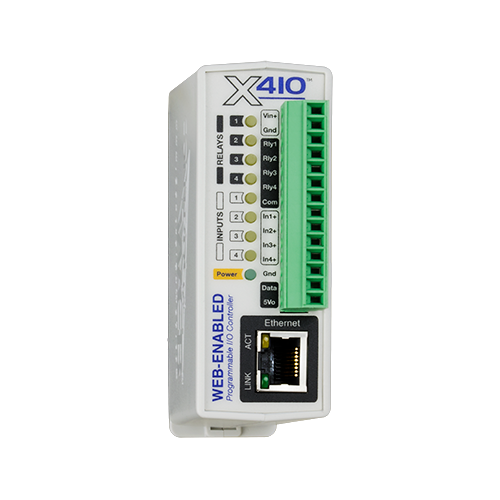

This unit is a I/O control module that provides advance logic tasks saving the need of writing a script.

The X-410 allows Control By Web products to communicate with each other, allowing you to have up to 32 modules and/or 100 inputs. Best suited for use with the X-400 series units.

No software is required, just log on using the IP address of the device.

(X-410-I)

  • 4 relays
  • 4 digital inputs
  • Monitor up to 16  temperature/humidity sensors
  •  Peer to Peer communication
  • Conditional tasks
  • Scheduled tasks
  • Advanced logic
  • Logging
  • Graphing
  • Monitor and control page
  • User permissions
  • Automatic reboot devices

Power Requirements

  • 9-28 VDC
  • Max Current: 240mA

Relay Contacts

  • Number of Relays: 4
  • Max Voltage: 28VAC, 24VDC
  • Max Current: 1A
  • Contact Type: SPST (Form A)
  • Load Type: General Purpose
  • Contact Resistance: 1 milliohm max
  • Contact Material: AgNi
  • Electrical Life: 100K operations (Min)
  • Mechanical Life: 5M cycles (Min)
  • Environmental Rating: Over voltage Category II, Pollution Degree 2
  • Relay Modes: ON/OFF or Pulsed
  • Pulse Timer Duration: 0.1 to 86,400 Seconds (1-day)

Digital Inputs

  • Number of Inputs: 4
  • Type: Optically-Isolated
  • Voltage Range: 4-26VDC
  • Current: 950uA @ 4V, 8.5mA @ 26V
  • Minimum Hold Time: 20ms
  • Input Functions: Monitor State, Control Relays, Control Remote Relays, Scalable Counter, On Timer, Total On Timer, Frequency
  • Maximum Count: 24-bit
  • Max Count Rate: 200Hz Max (Dependent on Configuration)
  • Edge Trigger: Rising, Falling or Both

Temperature Sensors

  • Maximum Number of Sensors: 16
  • Type: Digital 1-Wire (Maxim Semiconductor DS18B20)
  • Temperature Range: -55°C to +125°C
  • Accuracy: ±0.5°C from -10°C to +85°C
  • Sensor Functions: Monitor Temperature, Log Temperature, Email Alerts, SNMP Traps
  • Humidity Type: Xytronix Model X-DTHS-P sensor
  • Humidity Range: 0-100% RH
  • Accuracy: ±2%
  • Max Cable Length: 180m maximum combined cable length

Real-Time Clock:

  • Manual or NTP(Network Time Protocol) setup
  • NTP Sync Period: Once, Daily, Weekly, On Powerup
  • Auto Daylight Savings Adjustment
  • Battery (capacitor) Power Backup

Capacitor Power Backup

  • Backup Functions: Retain Real-Time Clock, 1 Register, 2 Counters, 4 Relay States
  • Backup Duration: 2 week minimum

Network

  • Type: 10/100 Base-T Ethernet Port
  • Setup: Static or DHCP IP address configuration

Connectors

  • Power, Outputs, and Inputs: 14-Position, 3.81mm, Removable
  • Network: 8-pin RJ-45

LED Indicators

  • Number of LEDs: 11
  • Power on
  • Relay coil energized 1-4
  • Digital Inputs 1-4
  • Network linked
  • Network activity

Physical

  • Operating Temperature: -40°C to 65.5°C
  • Size: 35.7x98.5x78 (WxHxD mm)
  • Weight: 142 grams
  • Enclosure Material: Lexan 940 Polycarbonate Plastic
  • Enclosure Flame Rating: UL94 V0

Protocols

  • HTTP, HTTPS, SSL, XML, Modbus TCP/IP, SNMP, SMTP, Remote Services

Logging

  • Log File Size: 512K (up to 8,448 logs)
  • Storage: Nonvolatile Flash
  • Buffer Architecture: Circular Buffer
  • Log data can be periodically stored on a computer via FTP or email.

Advanced Features

  • Task Builder
  • BASIC interpreter
  • Remote services
SKU X-410-I
Brand Control By Web
Shipping Weight 0.2000kg
