The X-400 allows you to add multiple combinations of I/O to suit your specific application. Expansion modules can either be directly connected through the expansion bus or connect remote ControlByWeb devices through an Ethernet network.

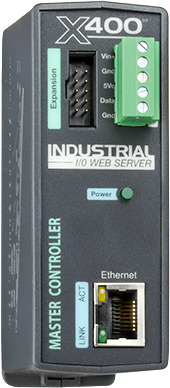

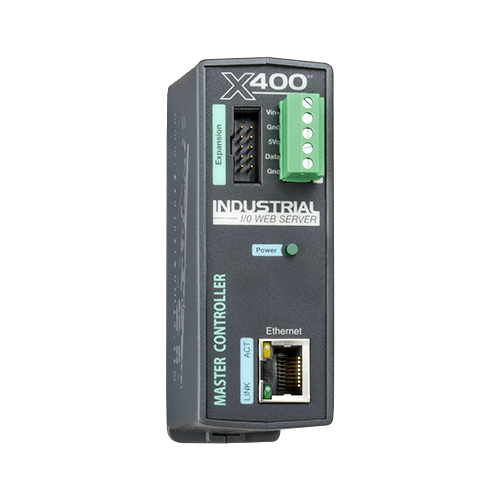

(X-400-I)

  • Expansion Bus
  • Peer-to-Peer Communication
  • 1-Wire Bus: Monitor
  • Built-in web server for configuration and remote monitoring
  • User Permissions
  • Task Builder
  • 50 Scheduled Tasks
  • 50 Conditional Tasks
  • 20 Reboot Tasks
  • 20 Override Schedules
  • Send email alerts based on user-defined conditions (supports encrypted email servers, such as Gmail)
  • No software required
  • Customizable, web-based Control Page
  • BASIC script support for advanced flexibility
  • Data Logging
  • Graphing
  • Static or DHCP IP address configuration
  • Modbus, SNMP, Remote Service, IP Filtering
  • DIN-Rail/wall mountable

Power Requirements

  • Voltage: 9-28 VDC
  • Max Current: (See Table)
  • Power Supply    Input Current
  • (no expansion modules)    Input Current
  • (X-400 + 1.7A for expansion modules)
  • 9 VDC    134 mA    1.834 A
  • 12 VDC    101 mA    1.801 A
  • 24 VDC    55 mA    1.755 A

Voltage Outputs

  • Expansion Bus: 1.7A max

Temperature Sensors

  • Maximum Number of Sensors: 16
  • Type: Dallas Semiconductor DS18B20
  • Temperature Range: -55°C to +125°C
  • Accuracy: ±0.5°C from -10°C to +85°C
  • Sensor Functions: Monitor Temperature, Log Temperature, Email Alerts, SNMP Traps
  • Humidity Type: Xytronix Model X-DTHS-P sensor
  • Humidity Range: 0-100% RH
  • Accuracy: ±2%
  • Max Cable Length: 180m maximum combined cable length

Real-Time Clock:

  • Manual or NTP(Network Time Protocol) setup
  • NTP Sync Period: Once, Daily, Weekly, On Powerup
  • Auto Daylight Savings Adjustment
  • Battery (capacitor) Power Backup

Capacitor Power Backup

  • Backup Functions: Retain Real-Time Clock, 1 Register, 2 Counters, 64 Relay States (local and expansion relays only)
  • Backup Duration: 2 week minimum

Network

  • Type: 10/100 Base-T Ethernet Port
  • Setup: Static or DHCP IP address configuration

Connectors

  • Power and 1-Wire Bus: 5-Position, 3.81mm terminal spacing, Removable. For 16-28 AWG wire.
  • Expansion Bus: Ribbon cable, 10-conductor, polarized, 2x5-position, 0.100" pitch Provides power and communications for expansion modules (Communications: RS-485)
  • Network: 8-pin RJ-45

LED Indicators

  • Number of LEDs: 3
  • Power on
  • Network linked
  • Network activity

Physical

  • Operating Temperature: -40°F to 150°F (-40°C to 65.5°C)
  • Size: 35.7x98.5x78 (WxHxD mm)
  • Weight: 142 grams
  • Enclosure Material: Lexan 940 Polycarbonate Plastic
  • Enclosure Flame Rating: UL94 V0

Protocols

  • HTTP, HTTPS, SSL, XML, Modbus TCP/IP, SNMP V1,2C,V3, SMTP

Email Notifications

  • Email Addresses: 8
  • Encrypted Email Alerts: STARTTLS and TLSL/SSL
  • Alert Functions: I/O states - Fully customizable

Logging

  • Log File Size: 3,072-Kbyte (up to 50,688 logs)
  • Storage: Nonvolatile Flash
  • Buffer Architecture: Circular Buffer
  • Log data can be periodically read and stored on a computer

Advanced Features

  • Task Builder
  • BASIC interpreter (up to 4-Kbytes script file size)
  • Remote services
SKU X-400-I
Brand Control By Web
Shipping Weight 0.2000kg
